Pioneer Breakaway Clamps for 1/2" Body Size Agricultural Quick Couplings with Push - Pull / Double Acting Sleeves

Pioneer Clamps for Agricultural Quick Couplings are designed to be used with push-pull type sleeves to allow the couplings to disconnect in a breakaway situation.

Pioneer Breakaway Clamps are designed to be used with 1/2" body size agricultural quick couplings that have 1 1/2" diameter push-pull type sleeves. When the coupler female bodies are securely and properly installed in the clamp, the push-pull sleeve will allow the coupler and male tip to disconnect in a breakaway situation. This can help to avoid costly damage such as broken hose and mass fluid spillage. Single and double clamp styles are available.

Single Breakaway Clamp 5001-4 is compatible with these series Pioneer couplers:
• 4200, 8200

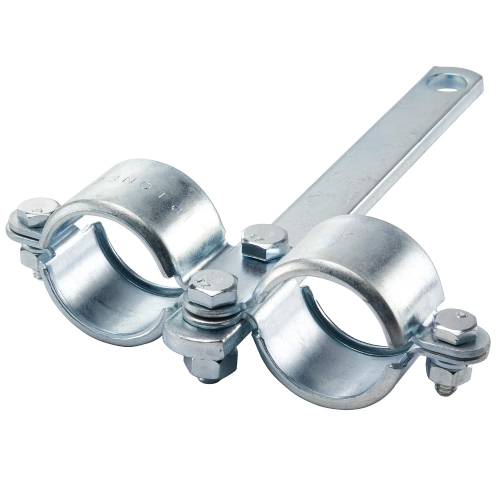

Double Breakaway Clamp 5006-4 is compatible with these series Pioneer couplers:
• 4200, 8200, 8450
Double Breakaway Clamp 9006-4 is compatible with 9250 Pioneer lever couplers

Markets:

• Agriculture
• Mobile Farm Equipment

Features/Benefits:

• When properly installed in the clamp, the coupling will disconnect and valves will automatically close in the case of a breakaway
• Pioneer Breakaway Clamps are compatible with 1/2" body size Pioneer agricultural couplers that have 1 1/2" diameter push-pull / double acting sleeves

Applications:

• Tractors and mobile equipment attachments
• Agricultural attachments requiring breakaway
