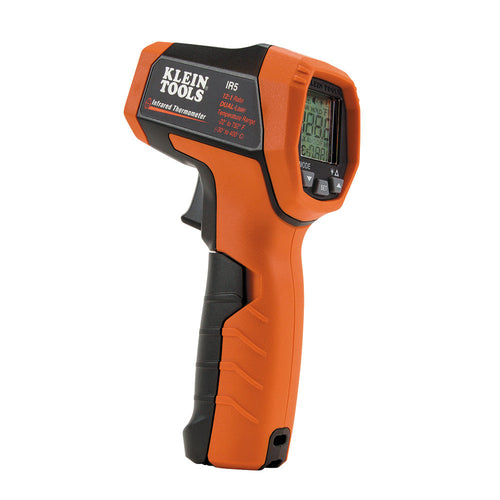

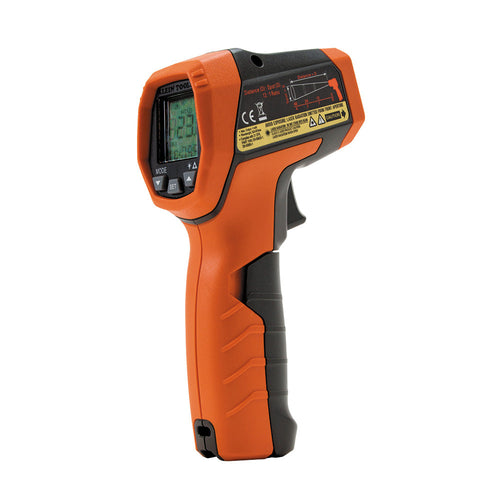

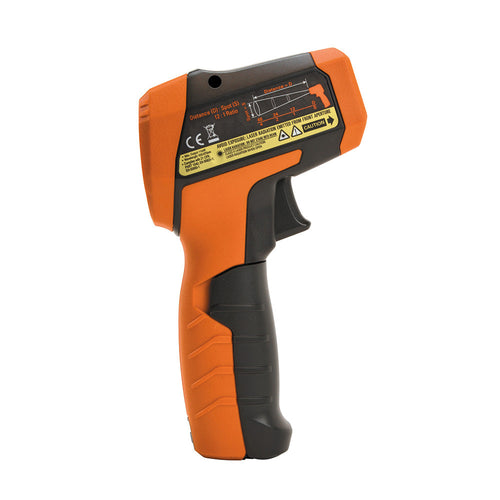

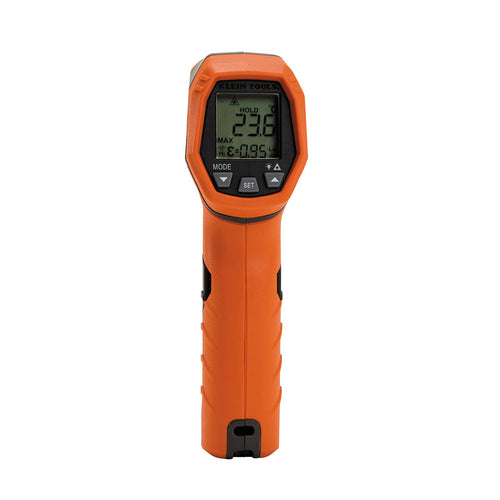

Klein Dual Laser Infrared Thermometer

Klein Tools

SKU: IR5

Model: IR5

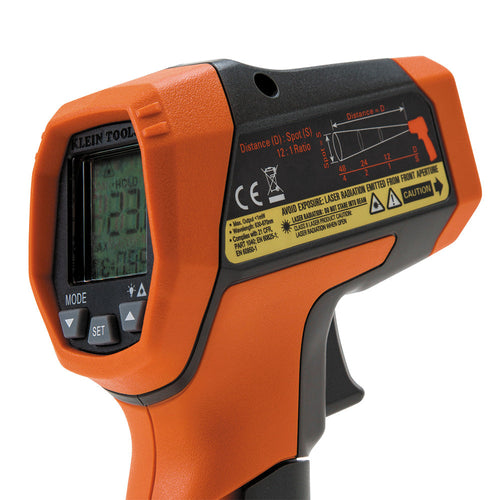

Optical Resolution (Distance-to-spot) is 12:1

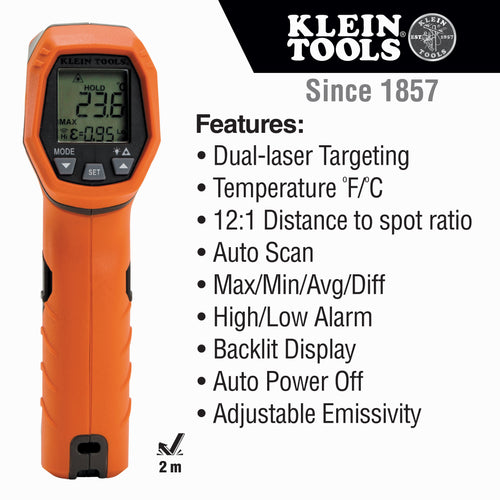

Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
Drop protection to 6.6-feet (2 m)
Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
Not a medical device; thermometer is NOT intended for use on people or animals.
Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on

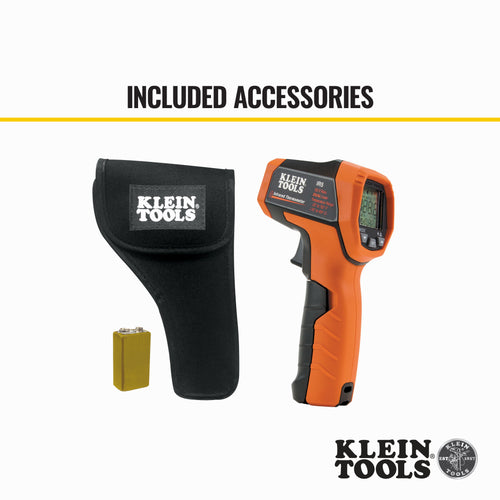

Includes custom pouch and batteries
Adjustable emissivity
Soft-touch, over-mold housing
For ambient temperatures above freezing, the accuracy is +/- 4-degrees F or +/- 2-percent; Accuracy below freezing is +/- 4-degrees F plus 0.2 degrees per degree below 32-degrees F
Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

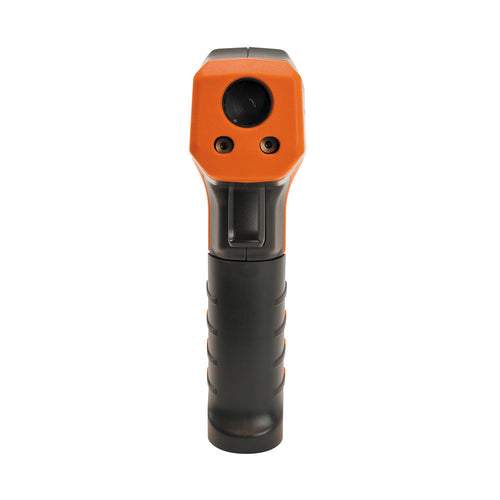

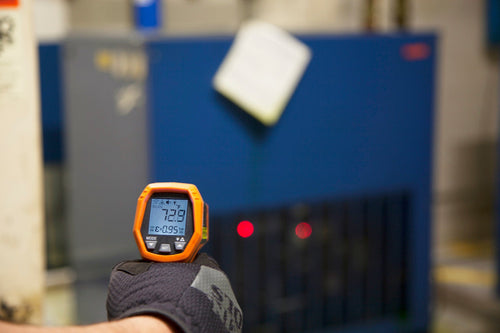

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight 12:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the two laser spots on the surface of the object being measured approximates the diamater of the circular measurement area from which the infrared sensor is collecting data.

Specifications

Type:	Dual Laser Infrared Thermometer
Application:	Accurate Targeting and Temperature Measurement
Special Features:	Several Calculation Modes to Facilitate Different Temperature Measurement Applications
Batteries:	1 x 9V
Distance to Spot:	12:1
Accuracy:	+/- 4° F or +/- 2%; Accuracy Below Freezing is +/- 4° F Plus 0.2 Degrees Per Degree Below 32° F
Display:	Digital Backlit
Response Time:	<0.25s
Included:	Custom Pouch and Batteries
Overall Length:	6.82'' (17.3 cm)
Overall Width:	1.84'' (4.7 cm)
Overall Height:	4.53'' (11.5 cm)
Weight:	9.9 oz (281 g)

WARNINGS

Thermometer is NOT intended for use on people or animals.
Do not direct laser beam into eyes, as this can cause permanent eye damage.
Do not use the instrument if the case is damaged in any way.
Replace the battery as soon as the low battery indicator appears.
Avoid using the instrument around strong electromagnetic fields.
